Compact Plants Phenomics Center

  • LemnaTec Phenocenter

LemnaTec Phenocenter

The automated, high-throughput phenotyping platform for compact plants was established with funding from M.J. Murdock Charitable Trust and Washington State University (CAHNRS, CAS, SBS, and OR). This phenomics platform from LemnaTec was built into a light/temperature/humidity/CO2-controlled growth chamber (Conviron). The platform carries a suite of cameras for pulsed chlorophyll fluorescence imaging (PAM), visible RGB (for growth rates and biomass quantification), photon counting (for bioluminescence detection), and near-infrared (for water content) imaging systems, as well as a 3D laser scanner for plant structure. The platform houses 42 trays for upwards of 168 Arabidopsis plants or crop seedlings in a single autonomous experiment. Our goal is to provide a high-quality phenotyping services for the WSU community and beyond.

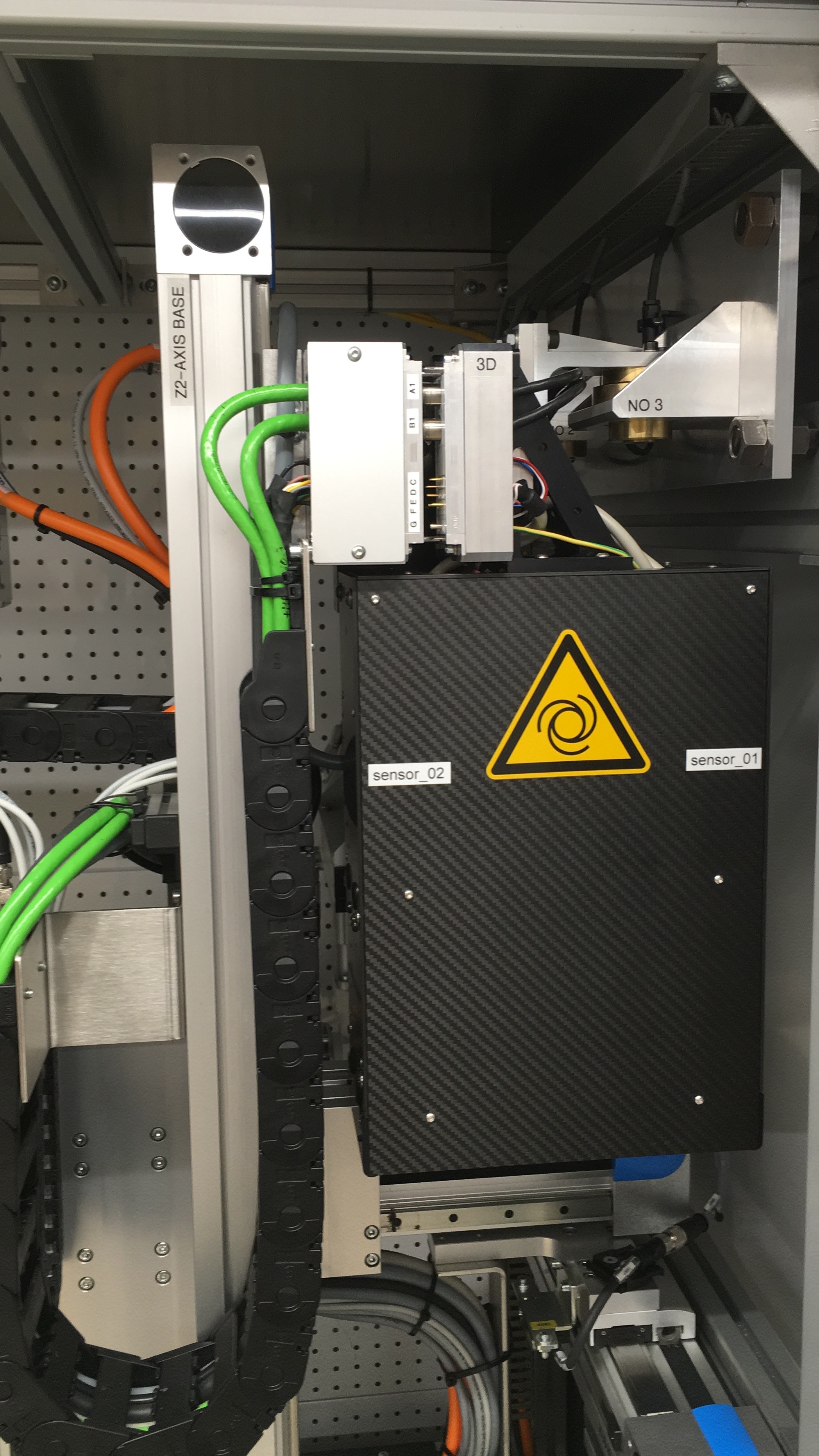

3dscanner

3D lidar system from Fraunhofer

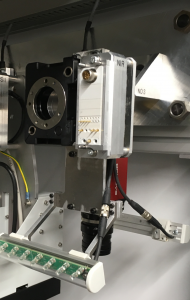

NIR

RGB and SWIR camera systems from Allied.

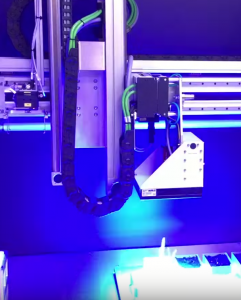

pulse amplitude modulating psII camera at work

Walz MAXI PAM imaging system



























image006   image005   image002









Contact information
Dominik Schneider, Phenomics Manager, dominik.schneider@wsu.edu

Location
Johnson Hall 186
